Autolite Model 4300 Carburetor

CD-ROM, eBook, USB

The Autolite Model 4300 Carburetor – Operation, Adjustment and Overhaul contains instructions on the Autolite Model 4300 Carburetor.


SKU: 10177 Category:


Title: Autolite Model 4300 Carburetor

  • Models covered: Ford C4 Automatic Transmissions
  • Pages: 74
  • Requirements: Adobe Reader
  • Operating System: Windows, MAC iOS, and Android
  • Manufacturer: Forel Publishing Company, LLC
Description: This is an electronic reproduction of the original Ford printed manual. The Autolite Model 4300 Carburetor – Operation, Adjustment and Overhaul (Vol. 67 S2 L2, October 1966) and the Ford 4300 Carburetor Operations, Diagnosis, Adjustment and Overhaul Service Training Courses 9503.1, 9503.2 contains information on the diagnosis of problems, Adjustments to be made and basic overhaul procedures for the Autolite Model 4300 Carburetor. These manuals are filled with dozens of high resolution color images and diagrams to clearly show the flow patterns needed to troubleshoot. Topic covered such as: Fuel Inlet System, Idle Fuel Supply System, Primary Main Fuel Metering Systems, Accelerating Pump System, Power Fuel Supply System, Secondary Main Fuel Metering System, Hot Idle Compensator, Automatic Choke System, Diagnosis, Hard, Slow or No Start, Poor Idle, Poor Acceleration, Flooding, Running Rich, Running Lean, Diagnosis Guide, Float Adjustment, Choke Plate Pulldown, Fast Idle Cam Choke Clearance, Unloader Clearance (Dechoke), Air Valve Spring Adjustment, Accelerating Pump Stroke, Fuel Bowl Vent Valve Adjustment, Choke Setting, Idle Adjustments, Overhaul, Disassembly, Cleaning and Inspection, Assembly, and much more.
The descriptions, testing procedures, and specifications in this handbook were in effect at the time the handbook was approved for printing.

This product was produced in Adobe Reader (pdf) format to retain the same look and feel of the original manual. Simply scroll through the pages and sections just like reading a normal printed manual. In addition, each page can be printed and reprinted, if damaged in the garage. Need to see more detail? The zoom feature allows you to magnify pages to over 1200% to see details too small to see in a printed manual. Another great feature is the ability to search the entire manual by keywords.

Product Features:

  • Windows, MAC iOS, and Android Operating System Compatible
  • USB Flash Drive – Save your manual to a USB flash drive for total portability
  • Printable – Print only the pages you need

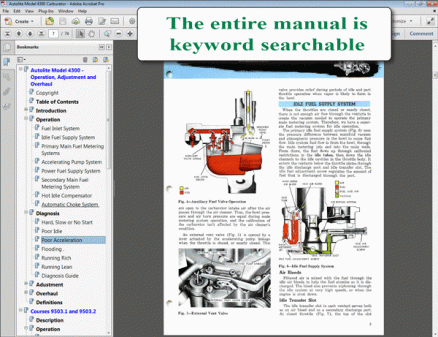

  • Searchable – Search the entire manual in seconds
  • Zoom – Zoom in to over 1200% to see the exact details
  • Bookmarked – Manual is bookmarked to locate sections in seconds
  • Money Back Guarantee – We stand behind the quality of our products
  • Licensed – Our products are approved and licensed by Ford Motor Company
Official Licensed Product of the Ford Motor Company to
This product is licensed and approved by the Ford Motor Company.

Ford Oval and nameplates are registered trademarks owned and licensed by the Ford Motor Company. Manufactured by the Forel Publishing Company, LLC

This product was produced using Adobe Reader, the original developers of the Portable Document Format (pdf). There are many other companies that have created PDF Viewers, but we strongly recommend using Adobe Acrobat Reader DC. Adobe Reader is FREE! Download the latest version from Adobe at:

Get the latest version of Adobe Reader

Free tech support is part of every product we offer.

Trouble with our product? We are here to help! Just like old cars and trucks, not everything works like it should. So, if you have any trouble with the installation or activation of our manual, just contact us and we WILL get it working for you. We stand behind our products!

Additional information

Weight 2.2 oz
Dimensions 8 × 4 × 1 in
Manual Format

CD-ROM, eBook, USB
